INCLUSIONS & OPTIONAL EXTRAS
Posts: 100mm x 100mm x 3.00mm Square Hollow Section
The corner posts for each pod. A 90mm x 90mm telescopic extension can be sleeved into the bottom of each corner post to allow for site level variations if reuired (at additional cost).
Floor Beams: 150mm x 50mm x 4.00mm U Channel (back-to-back)
The horizontal floor beams around the perimeter of each pod (between the posts) that provide structural support for the joists and the floor.
Lintel Beams: 150mm x 50mm x 4.00mm U Channel (back-to-back)
The horizontal head height beams around the perimeter of each pod (between the posts) that provide structural support for the windows and doors.
Roof Beams: 100mm x 50.00mm x 4.00mm U Channel (back-to-back)
The horizontal roof support beams are used to connect to the roof of each pod (between the posts).
Floor Joists: 150mm x 50mm x 3.20mm C Purlin
These horizontal C shaped joists (at 400mm ceneters internally and 300mm centers externally) provide a stable platform on which to affix the structural flooring and/or decking onto.
Structural Flooring: 2400mm x 1200mm x 20mm Viva Board
The 20mm masonry sheets are fixed directly to the floor joists and floor beams to form a structural base under the finished floor where tiles, laminate or timber flooring may be affixed.
Foundations: Footings or Below Ground Concrete (NOT included in either price (supply or installed) stated under Floor Plan Ideas)
To site specification and any/all regulatory requirements specified by your local authority
Roof & Ceiling: 125mm EPS Sandwich Panel w/ Ribbed Exterior
EPS sandwich panels are formed layers of steel, polystyrene-with air pockets and steel. They are designed to be lightweight and strong (spanning large distances) very with high insulation and sound retention properties thus, making them the perfect roof, ceiling and wall solution.
External Walls: 50mm EPS Sandwich Panel w/ Ribbed, Microrib or V Line Exterior
EPS sandwich panels are formed layers of steel, polystyrene-with air pockets and steel. They are designed to be lightweight and strong (spanning large distances) very with high insulation and sound retention properties thus, making them the perfect roof, ceiling and wall solution.
Internal Walls: 12mm Knauf Soundshield Plasterboard w/ Low Sheen VOC Free Paint
A quite traditonal, yet thicker and sound absorbing wall finish ihat is affixed to wall battens, providing a wall cavity for any/all services. Painting this material is simple and an effective way to add a splash of color to any room
Living / Bedroom Pod:
Double Glazed (5+12+5) Stacker Door (open-open-fixed or fixed-open-open)
4000mm (width) x 2300mm (height)
Double Glazed (5+12+5) Awning Window (open-fixed-open)
4000mm (width) x 900mm (height)
Double Glazed (5+12+5) Sliding Window (open-fixed-open)
4000mm (width) x 500mm (height)
Dining Pod:
8mm Toughened Fixed Window (fixed)
3000mm (width) x 2300mm (height)
Double Glazed (5+12+5) Awning Window (open-open)
3000mm (width) x 900mm (height)
Double Glazed (5+12+5) Sliding Window (open-open)
4000mm (width) x 500mm (height)
Kitchenette / Kitchen Pod:
Single Glazed (8mm) Gas Strut Assisted Awning Window (open)
2800mm (width) x 1400mm (height)
Double Glazed (5+12+5) Awning Window (open-open)
2800mm (width) x 900mm (height)
Bathroom Pod:
Double Glazed (5+12+5) Sliding Window (open-fixed-open)
2800mm (width) x 500mm (height)
Toliet (WC) Pod:
Double Glazed (5+12+5) Sliding Window (fixed-open-fixed)
2800mm (width) x 500mm (height)
Base Cabinets:METOD Base Cabinet w/ drawers or Doors (Black Maximera)
MAXIMERA drawer is a smooth-running, full-extension drawer with built-in dampers so that the drawers close slowly, softly and quietly. Sturdy frame construction (18 mm thick). Guarantee: 25 years (conditions apply)
Cabinet Doors:RINGHULT Cabinet Doors (High Gloss - White)
Clean, straight lines with a gloss surface which makes RINGHULT doors both durable and easy to clean. The foil wrap gives a smooth and practical surface that is resistant to moisture and staining. Guarantee: 25 years (conditions apply)
Counter Top:PINNARP Ash Worktop (38mm)
The modern production technology enables the creation of wooden worktops with unique expressions whilst using less wood thus, reducing the impact on our environment. Guarantee: 25 years (conditions apply)
Cooktop:HAFELE Gas HH-320GG 2 Burner (30cm)
Crystal glass material, heat resistant 2 burner head. Front control knob. Brass burner w/ cast iron grate. Automatic gas-electric ignition system used with low pressure gas pressure regulator. Guarantee: 1 year (conditions apply)

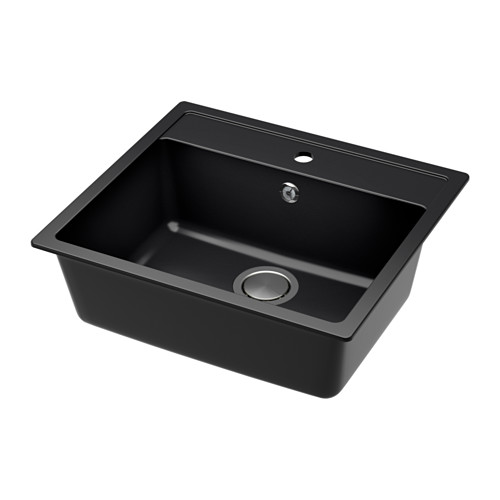

Kitchen Sink:HÄLLVIKEN Inset sink, Single Bowl (Qaurtz Composite - Black)
Modern and extremely hygienic due to the high density, non-porous surface so, dirt and bacteria will not impregnate the surface. Guarantee: 25 years (conditions apply)
Kitchen Sink Mixer:BOSJÖN Mixer Tap (Chrome Plated - Black)
This tap helps lower water and energy use thus, helping you lower your energy costs and the quality is guaranteed to last many years. Guarantee: 10 years (conditions apply)
Base Cabinets:METOD Base Cabinet w/ drawers or Doors
MAXIMERA drawer is a smooth-running, full-extension drawer with built-in dampers so that the drawers close slowly, softly and quietly. Sturdy frame construction (18 mm thick). Guarantee: 25 years (conditions apply)
Cabinet Doors:RINGHULT Cabinet Doors
Clean, straight lines with a gloss surface which makes RINGHULT doors both durable and easy to clean. The foil wrap gives a smooth and practical surface that is resistant to moisture and staining. Guarantee: 25 years (conditions apply)
Counter Top (Side 1):PINNARP Ash Worktop (38mm)
The modern production technology enables the creation of wooden worktops with unique expressions whilst using less wood thus, reducing the impact on our environment. Guarantee: 25 years (conditions apply)
Counter Top (Side 2):KASKER Quartz Worktop (40mm)
Quartz worktops have a hard, smooth and non-porous surface that is resistant to stains and moisture, making them easy to clean. Guarantee: 25 years (conditions apply)
Cooktop:HAFELE Gas HH-783GSQ 3 Burner (78cm)
Crystal glass material, heat resistant 2 burner head. Front control knob. Brass burner w/ cast iron grate. Automatic gas-electric ignition system used with low pressure gas pressure regulator. Guarantee: 1 year (conditions apply)
Kitchen Sink:HÄLLVIKEN Inset sink, 1 1/2 Bowl w/ Drainboard(Qaurtz Composite - Black)
Modern and extremely hygienic due to the high density, non-porous surface so, dirt and bacteria will not impregnate the surface. Guarantee: 25 years (conditions apply)
Kitchen Sink Mixer:ALESKÄR Mixer Tap w/ Handspray (Chrome Plated - Black)
This tap helps lower water and energy use thus, helping you lower your energy costs. The handspray is practical for cleaning vegetables and the quality is guaranteed to last many years. Guarantee: 10 years (conditions apply)

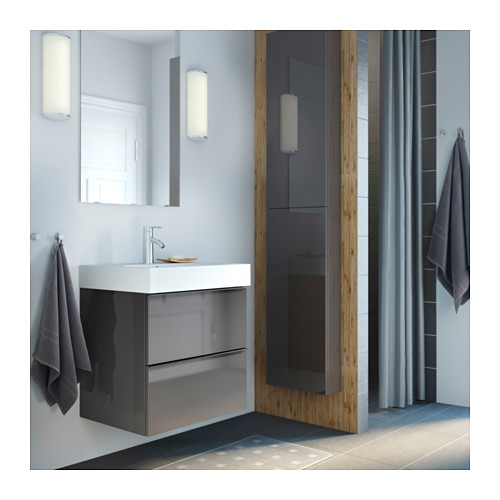

Basin:BRÅVIKEN 80cm Single Wash Basin (White)
Natural dolomite (marble) is crushed and formed into a beautifully shaped basin with a glossy, highly scratch-resistant surface. Guarantee: 10 years (conditions apply)

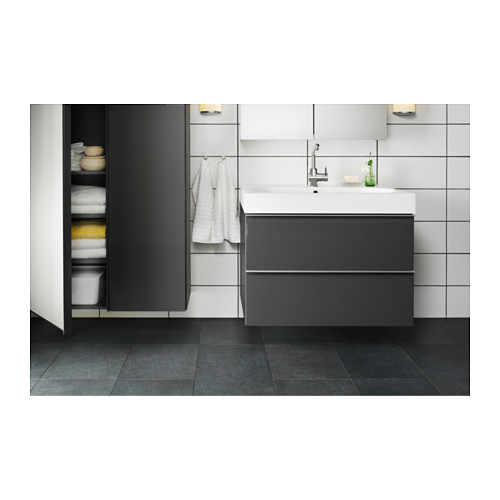

Cabinet:GODMORGON / BRÅVIKEN 80cm Cabinet w/ 2 drawers (High Gloss - Grey)
The high gloss finish is easy to wipe and keep clean, and it creates a fresh modern expression in the bathroom. Guarantee: 10 years (conditions apply)
Mixer/Tap:BOSJÖN Basin Mixer Tap (Brushed Black Metal)
The BOSJÖN mixer tap has an ingenious mechanism that reduces water flow whilst maintaining water pressure meaning, you'll save water and energy. The mixer insert contains highly durable ceramic discs that handle the high friction that occurs when water temperatures change rapidly. Guarantee: 10 years (conditions apply)
Mirror:GODMORGON 80cm Mirror Cabinet w/ 2 Doors
Mirror doors are self-closing (last few centimeters) and the adjustable shelves are heat and impact resistant. They also have a high load-bearing capacity being tempered glass. The mirrors come with safety film which reduces the risk of injury if the glass is broken. Guarantee: 10 years (conditions apply)
Shower:BROGRUND Head & Handshower Kit w/ Diverter (Chrome Plated)
The full spray function of the shower head provides a wide and even coverage for a calming rainfall feeling. The hand shower has full spray functions and you can easily adjust the height of the hand shower thanks to the flexible rail bracket. Easy to clean via the rubber nozzles on the shower heads. The chrome-plated surface is hard, durable and easy to clean. Guarantee: 3 years (conditions apply)
Shower Grate:MAXXI Drain Line (Stainless Steel)
Not only an architectural feature for your bathroom, this 800mmx120mmx18mm stainless steel grate allows for maximum drainage and prevents water pooling. The removable cover also allows for easy cleaning. Guarantee: 1 year (conditions apply)

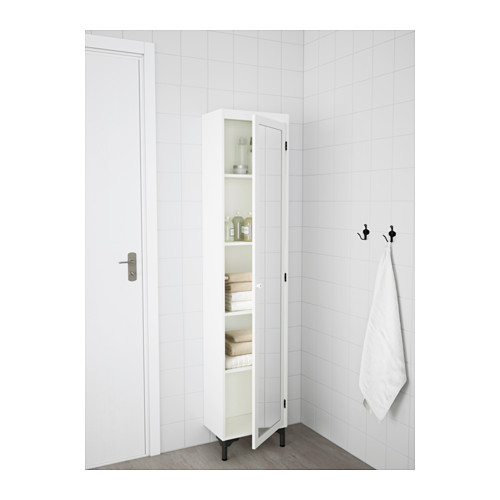

Storage:SILVERÅN Cabinet (172cm x 40cm x 25cm) w/ Mirror & Shelves (White w/ Hinged Door)
Mountable to the wall just above floor level with a universal hinge door (can open from the right or left). Guarantee: 1 year (conditions apply)
Toilet:Dual Flush Star 3/4.5 Liter Two Piece Ceramic
Dual Flush cistern (water saving) with soft close quick release seat and cover. Anti bacteria ceramic construction. Guarantee: 1 year (conditions apply)
Basin:BRÅVIKEN 60cm Single Wash Basin (White)
Natural dolomite (marble) is crushed and formed into a beautifully shaped basin with a glossy, highly scratch-resistant surface. Guarantee: 10 years (conditions apply)
Cabinet:GODMORGON / BRÅVIKEN 61cm Cabinet w/ 2 drawers (High Gloss - Grey)
The high gloss finish is easy to wipe and keep clean, and it creates a fresh modern expression in the bathroom. Guarantee: 10 years (conditions apply)
Mixer/Tap:BOSJÖN Basin Mixer Tap (Brushed Black Metal)
The BOSJÖN mixer tap has an ingenious mechanism that reduces water flow whilst maintaining water pressure meaning, you'll save water and energy. The mixer insert contains highly durable ceramic discs that handle the high friction that occurs when water temperatures change rapidly. Guarantee: 10 years (conditions apply)
Mirror:GODMORGON 60cm Mirror Cabinet w/ 2 Doors
Mirror doors are self-closing (last few centimeters) and the adjustable shelves are heat and impact resistant. They also have a high load-bearing capacity being tempered glass. The mirrors come with safety film which reduces the risk of injury if the glass is broken. Guarantee: 10 years (conditions apply)
Storage:SILVERÅN Cabinet (172cm x 40cm x 25cm) w/ Mirror & Shelves (White w/ Hinged Door)
Mountable to the wall just above floor level with a universal hinge door (can open from the right or left). Guarantee: 1 year (conditions apply)
Toilet:Dual Flush Star 3/4.5 Liter Two Piece Ceramic
Dual Flush cistern (water saving) with soft close quick release seat and cover. Anti bacteria ceramic construction. Guarantee: 1 year (conditions apply)
Living, Dining & Kitchen:3.00mm ECO Plank
Click lock eco plank flooring has the appearance of wooden flooring (in a variety of colors) but, offers the advantage of being softer underfoot and easy to replace if damaged
Bedrooms:3.00mm ECO Plank
Click lock eco plank flooring has the appearance of wooden flooring (in a variety of colors) but, offers the advantage of being softer underfoot and easy to replace if damaged
Bathrooms: 10mm Porcelain Tiles
Rectified porcelain tiles are strong with modern ilnes and a non porous surface, making them hhard wearing and easier to clean
Roof & Ceiling Insulation: 125mm EPS Sandwich Panel w/ Ribbed Exterior
EPS sandwich panels are formed layers of steel, polystyrene-with air pockets and steel. They are designed to be lightweight and strong (spanning large distances) very with high insulation and sound retention properties thus, making them the perfect roof, ceiling and wall solution. 4.84 R Value / 0.21 U Value
Wall Insulation: 50mm EPS Sandwich Panel w/ Ribbed, Microrib or V Line Exterior
EPS sandwich panels are formed layers of steel, polystyrene-with air pockets and steel. They are designed to be lightweight and strong (spanning large distances) very with high insulation and sound retention properties thus, making them the perfect roof, ceiling and wall solution. 3.23 R Value & 0.31 U Value
Floor Insulation: 20mm Viva Board
The Viva Board is laid directly over z purlin floors joists at 450mm centers so, floor insulation batts can be installed between z purlins for improved floor insulation values if desired. Nominal Only (standard)
Floor & Bathroom Ventialtion:Intellivent ® 2.0
Intellivent ® 2.0 is a completely new type of intelligent bathroom extraction and ventillation fan that sets a completely new standard for this type of product. The starting point has been to provide a significantly higher level of user friendliness, at the same time as new technology is introduced and low voltage power is used to maintain increased safety and lower energy consumption
The optional extras below are not included in the standard prices however, may be easily added to your ECOPOD at the additional cost stated under each extra!
Ceiling Rafters: 125mm Hardwood (conceal seams in ceiling and eave sheets)
As an optional decorative ceiling feature you can add125mm x 50mm hardwood rafters installed at 1000mm centers to break up the semi-gloss white ceiling. This adds a striking visual element and helps soften the stark white ceiling
Interior Wall Panels: Decorative Panels Teak (in place of plasterboard on internal walls)
As an optional extra we offer a range of easy-install timber look wall panels that can be installed instead of plasterboard. The panels are pre-cut to required length and installed using secret finish screws to steel battens in the wall structure
Floor & Lintel Beam Cover Panels: Timber Grain Teak (facade the steel posts and beams in a teak timber look)
As an optional extra we offer a range of easy-install timber look post and beam cover panels that can be installed over the steel to soften the harder materials (steel and glass) used in the building. The panels are pre-cut to the required length and installed using glue directly onto the structural steel being covered
Breakfast Bar:2800mm x 750mm x 40mm Quartz Worktop w/ Gas Strut Awning Window
Why not incorporate some real glamor, space and practicality to your kitchenette or kitchen. The breakfast bar includes a 350mm overhang (from the interior wall) and provides adequate space for up to 4 seats. The gas strut assisted (one piece) awning window brings the outdoor in and allows seemless interaction with those sitting outside
Add 62,700 THB (per kitchenette or kitchen)
Shower Seat:800mm x 300mm Stainless Steel & Hardwood Folding Seat
Have you ever wished that your shower had a seat? Well, here it is! This ingenious folding stainless steel and hardwood seat pivots up and locks into postion within seconds to provide the perfect place for you to shave your legs or relax in in steam room like environment
